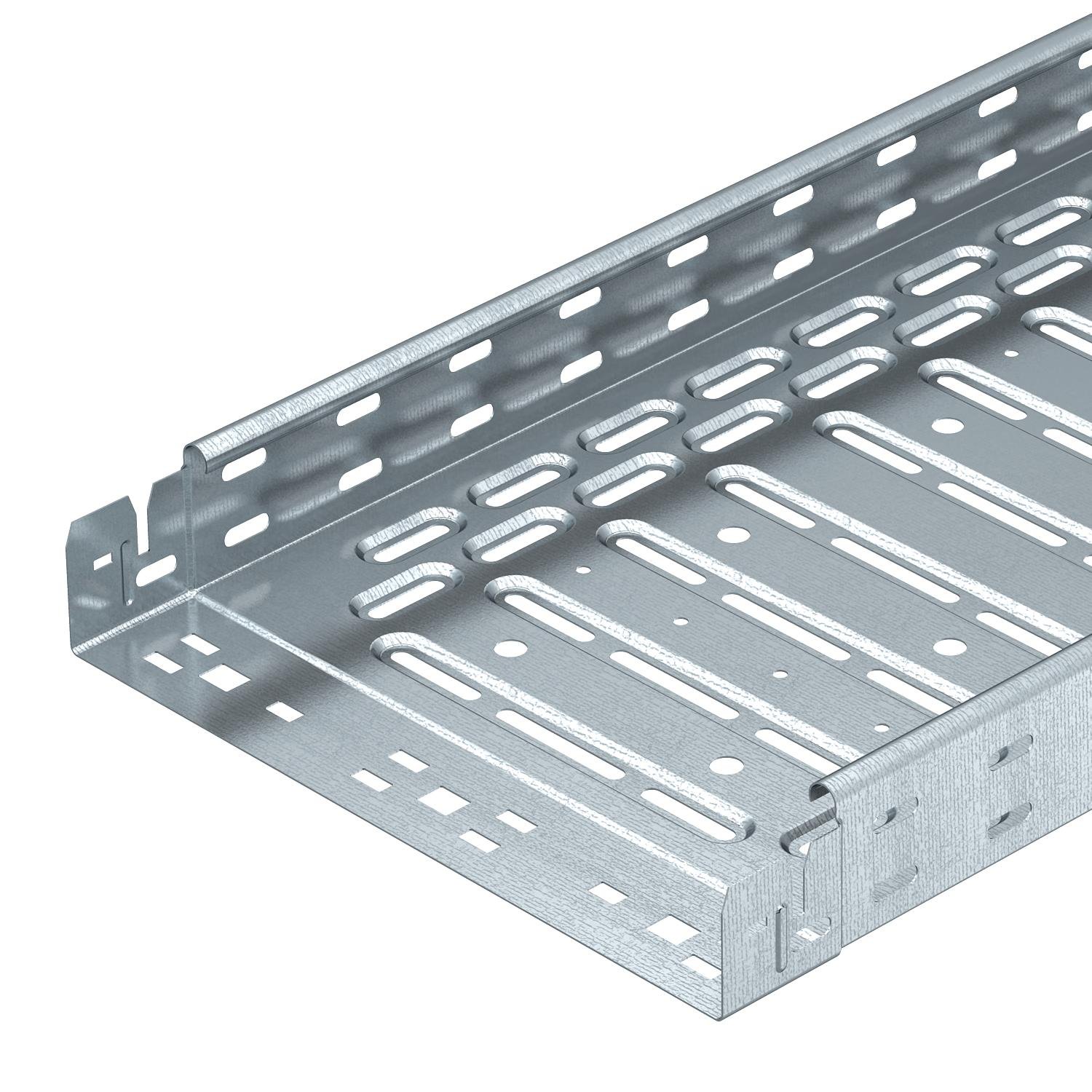

OBO Cable Tray RKS-Magic® 60 FT 200mm (W)

Code: 6047639
Selling Units: Mtr
Loading...


Support spacing 1.5 m 0,9 kN/m Connector version Integrated connector
Dimension y 150 mm Load test type according to IEC 61537 Type II
Magnetic shield insulation with cover 50 dB Magnetic shield insulation without cover 20 dB
Mounting perforation in base yes NATO hole pattern no
NEMA load class 8AA Plate thickness 1 mm
Type of connector, cable support system Click fastening Usable length 3000 mm
With cover no Dimension x 100 mm
Base perforation 1.3 Fire protection Maintenance of electrical function of cable-specific support structure
Support spacing 1.0 m 1,2 kN/m Colour zinc
Width 200 mm Wide-span version no
Usable cross-section 118 cm² Support spacing 2.5 m 0,4 kN/m
Support spacing 2.0 m 0,6 kN/m Side perforation yes
Rustproof steel, pickled no Maintain electrical functions yes
Height 2 in Dimension B 200 mm
CO₂ Footprint (GWP) Cradle-to-Gate 6,4546 kg CO₂e / 1 Meter Surface Hot-dip galvanised
Material Steel Length 3050 mm
Dimension 60x200x3050
