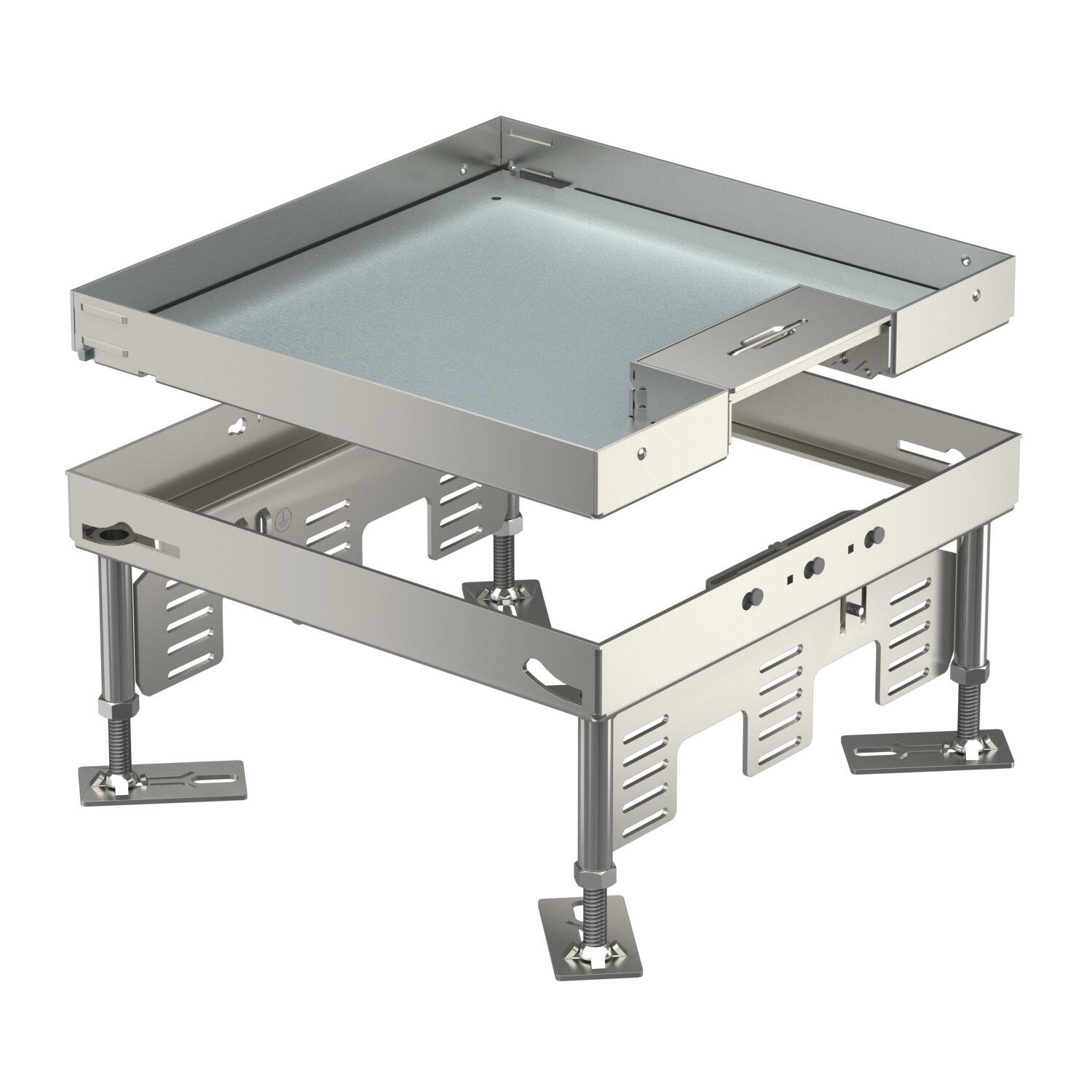

Shop Screed Systems OBO Height-adjustable Cassette with Cord Outlet, RKSN, Stainless Steel | 7409218
Precision Leveling & Premium Finish: OBO Height-Adjustable Cassette RKSN
Achieve seamless, flush floor integration with an adjustable stainless steel cassette built for high-density power access.
The OBO Height-Adjustable Cassette with Cord Outlet RKSN (Part No. 7409218) is designed for direct installation into underfloor boxes, duct systems, and raised floors. Featuring a swivellable cord outlet and an adjustable height range of 105mm to 150mm, this premium stainless steel unit provides elegant, accessible power and data routing for polished, carpeted, or hard floor finishes.
Why the RKSN Stainless Steel Cassette is a Project Essential:
- High-Grade Stainless Steel Build: Exceptional corrosion resistance and mechanical strength, delivering a refined aesthetic for modern architectural spaces.
- Precision Height Adjustment: Smoothly adjusts from 105mm to 150mm to align perfectly flush with finished floor surfaces prior to or after screed lay.
- Swivellable Cord Outlet: Features a flexible cord exit mechanism that allows continuous cable pass-through while keeping the lid closed and flush when in use.
- 20mm Recess Depth: Generous surface recess allows for exact inlay matching of thick floor coverings such as stone, tile, or carpet.
- High Load Bearing Capability: Engineered to withstand substantial foot traffic and heavy commercial loads without deformation.
Architectural Precision Underfoot:
Contractors require underfloor access solutions that blend robust mechanical protection with sophisticated interior aesthetics. The OBO RKSN Cassette (7409218) guarantees reliable height alignment and long-term durability, providing an unobtrusive, high-performance power outlet solution for commercial environments.
| Number of mounting boxes | 3 | Nominal size | 350 mm |
|---|---|---|---|
| Number of cable outlets | 1 | Decouplable | no |
| Height-adjustment range, max. | 150 mm | Height-adjustment range, min. | 105 mm |
| Floor height, max. | 150 mm | Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N | Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 | Approvals | VDE |
| Heavy-duty version | no | Installation system type | UT4 |

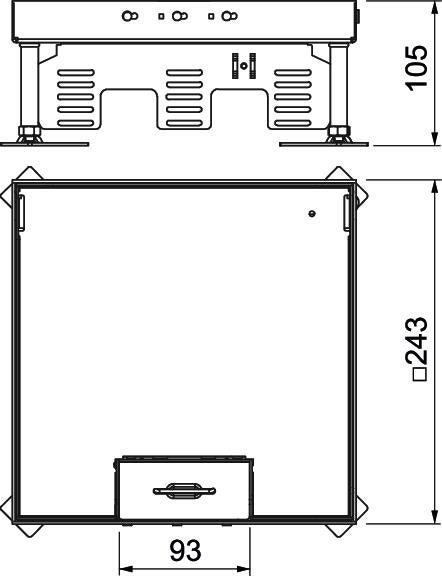

| Cable outlet version | Swivellable cord outlet | Dimension | 243x243mm |
| Floor care | Dry | Wide installation dimensions | 244 mm |
| Length of installation dimensions | 244 mm | Floor covering thickness | 20 mm |
| Floor height, min. | 105 mm | Nominal size for device installation units | 9 |
| Suitable for raised floor installation | yes | Suitable for cavity floor installation | yes |
| Number of installable devices | 12 | Installation depth | 105 mm |
| Device support to accept mounting boxes | yes | Cover version | Square |
| Protection rating IK code | IK10 | Material | Stainless steel 1.4301 |
