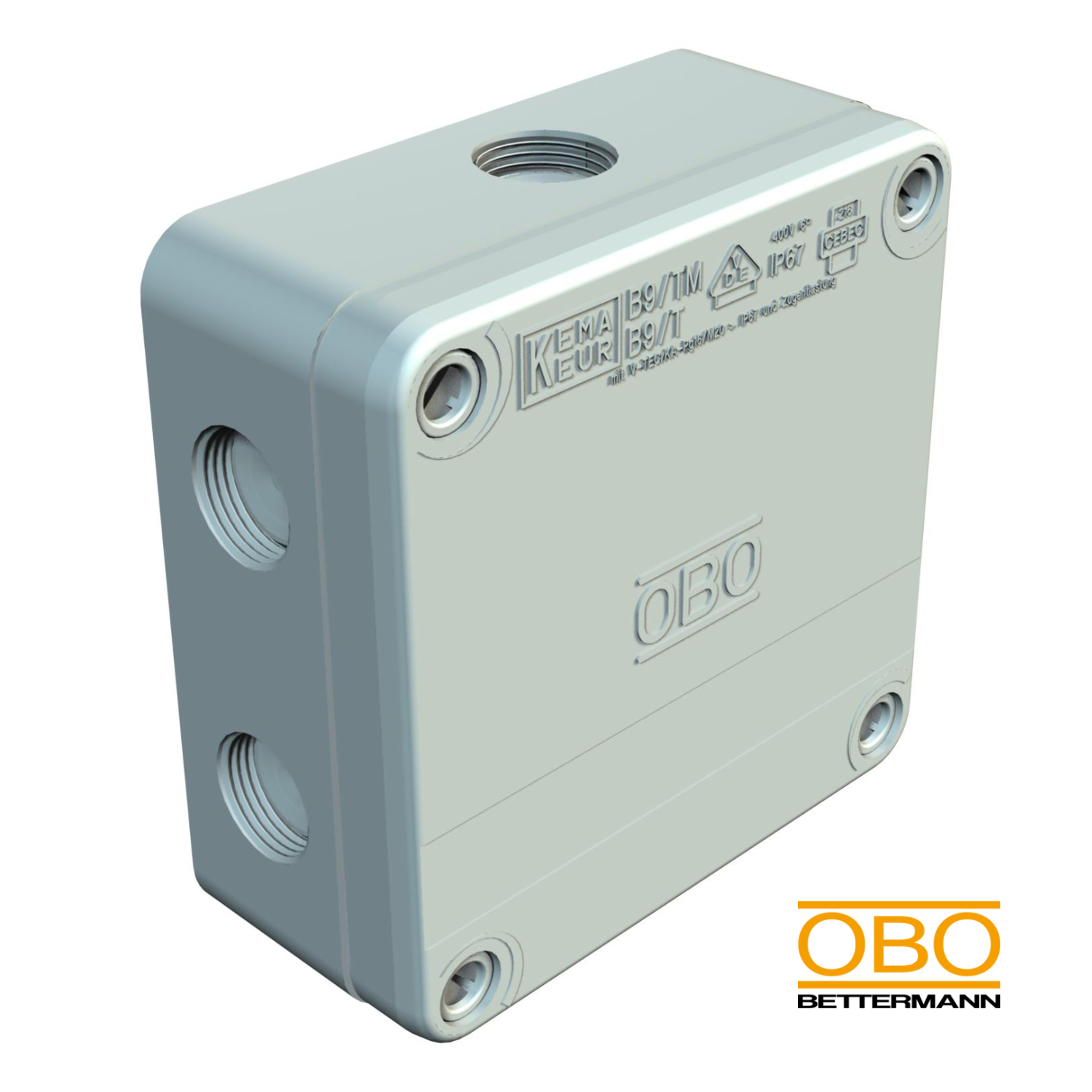

OBO Junction Box B 9/T
Compact, durable junction box for indoor and outdoor applications. Made from halogen-free, UV-resistant materials and a clamping cover for secure closure.
Features
- Protection Rating: IP67
- Nominal Voltage: 400 V
- Nominal Cross-Section: 6 mm²
- Cable Entries for cable diameter: 2 additional entries in base with push-through membrane
- Cover Type: Clamping cover
- External Dimensions: 110 x 110 x 50 mm
- Clear Internal Dimensions: 98 x 98 x 40 mm
- Order in multiples of: 5
- Price per: Unit
| Protection rating | IP67 | Max. Conductor cross-section | 6 mm² |
|---|---|---|---|
| Measured insulation voltage Vi | 400 V | Mounting type | Wall/ceiling mounting |
| No. of entries | 9 | Nominal cross-section, max. | 6 mm² |
| Nominal cross-section, min. | 4 mm² | Nominal voltage | 400 V |
| Permitted temperature range, max. | 60 °C | Permitted temperature range, min. | -5 °C |
| Material | Polypropylene | Sealable | yes |
| Shape | Square | Type of entry | Cable |
| Type of housing penetration | Thread and sealing membrane | Type of insertion | Cable/gland |
| Weatherproof | no | Width | 110 mm |
| with lid | yes | Explosion-tested version | no |
| CO₂ Footprint (GWP) Cradle-to-Gate | 1,5904 kg CO₂e / 1 Piece | Colour | Light grey; RAL 7035 |
| Cover | Not transparent | Cover fastening | Screwed |
| Dimension | 110x110x50 | Entries | (for cable diameter up to 15 mm) |
| Entry from rear | yes | Expandable | yes |
| Clear internal dimensions | 98x98x40 mm | Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C |
| For Ex zone | Without | For Ex zone dust | Without |
| For Ex zone gas | Without | Halogen-free | yes |
| Height | 51 mm | Length | 110 mm |
| Maintain electrical functions | Without |
