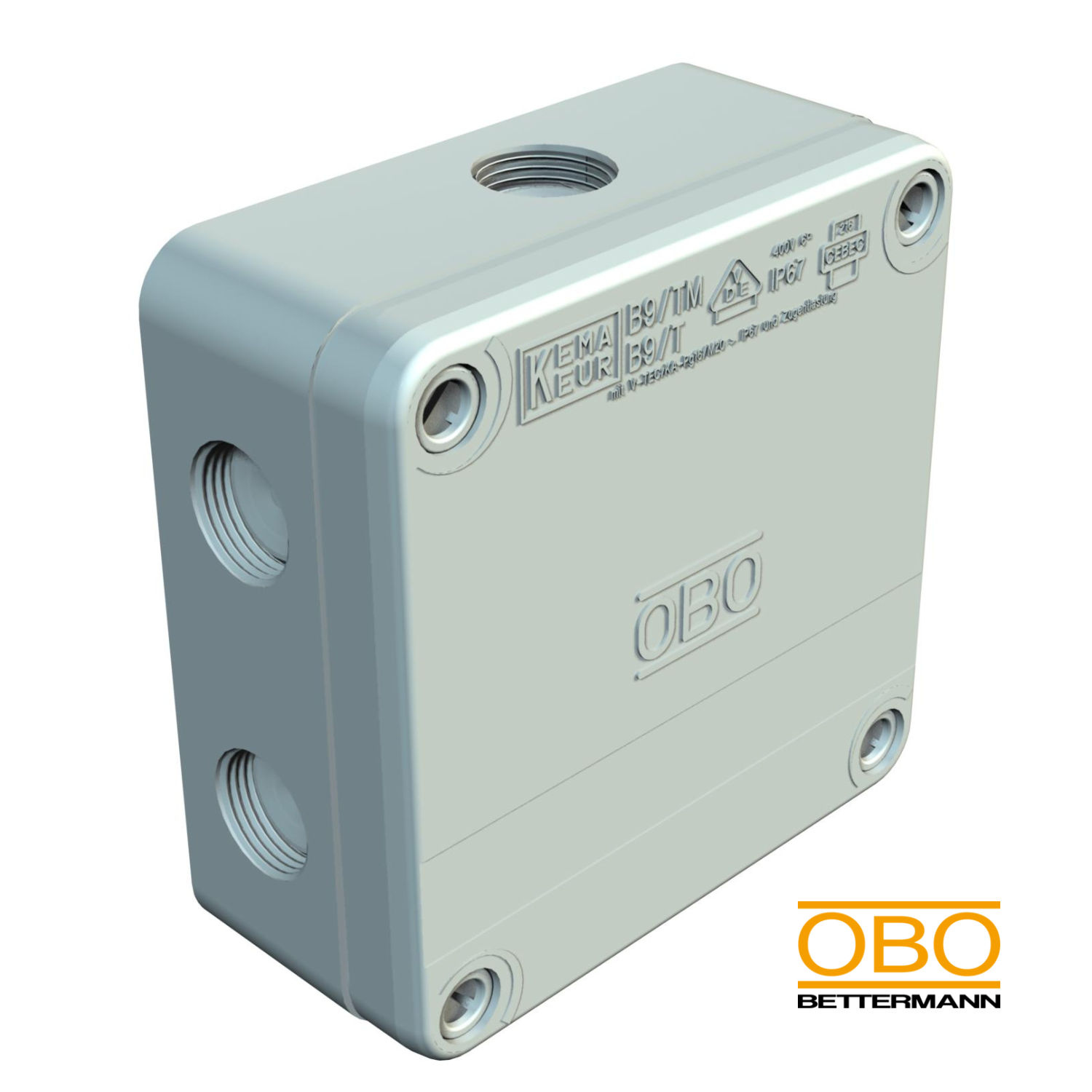

OBO Junction box B 9/T, Perforation Membrane, with Cable Gland, Metric
Compact, durable junction box for indoor and outdoor applications. Made from halogen-free, UV-resistant materials and a clamping cover for secure closure.
Features
- Protection Rating: IP67
- Nominal Voltage: 400 V
- Nominal Cross-Section: 6 mm²
- Cable Entries for cable diameter: 2 additional entries in base with push-through membrane
- Cover Type: Clamping cover
- External Dimensions: 110 x 110 x 50 mm
- Clear Internal Dimensions: 98 x 98 x 40 mm
- Order in multiples of: 5
- Price per: Unit
| Sealable | yes | Max. Conductor cross-section | 6 mm² |
|---|---|---|---|
| Measured insulation voltage Vi | 400 V | Mounting type | Wall/ceiling mounting |
| No. of entries | 9 | No. of terminals | 12 |
| Nominal cross-section, max. | 6 mm² | Nominal cross-section, min. | 4 mm² |
| Nominal current | 32 A | Nominal voltage | 450 V |
| Number of screwless terminals per pole | 2 | Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -5 °C | Pole number | 12 |
| Protection rating | IP67 | Material | Polypropylene |
| Shape | Square | Suitable for flexible conductors | yes |
| Suitable for multi-wire conductors | yes | Suitable for solid conductors | yes |
| Transparent | no | Type of entry | Cable |
| Type of housing penetration | Thread and sealing membrane | Type of insertion | Cable/gland |
| Version of electrical connection 1 | Screw connection | Version of electrical connection 2 | Screw connection |
| Weatherproof | no | Width | 16,6 mm |
| with lid | yes | Dimension | 4,0mm² |
| Clear internal dimensions | 98x98x40 mm | Closing plate required | no |
| CO₂ Footprint (GWP) Cradle-to-Gate | 1,6827 kg CO₂e / 1 Piece | Colour | White |
| Connectable conductor cross-section, fine-wire without wire-end ferrule, max. | 4 mm² | Connectable conductor cross-section, fine-wire without wire-end ferrule, min. | 1 mm² |
| Connectable conductor cross-section, multi-wire, max. | 4 mm² | Connectable conductor cross-section, multi-wire, min. | 1 mm² |
| Connectable conductor cross-section, single-wire, max. | 4 mm² | Connectable conductor cross-section, single-wire, min. | 1 mm² |
| Connection position | Side | Cover | Not transparent |
| Cover fastening | Screwed | Cross-section | Max. attachment each side: 4 mm² single-wire or 2.5 mm² multi-wire/flexible mm² |
| Ambient temperature | 80 °C | Drill hole spacing, centre | 8,1 mm |
| Entries | (for cable diameter up to 15 mm) | Entry from rear | yes |
| Expandable | yes | Explosion-tested version | no |
| Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C | For Ex zone | Without |
| For Ex zone dust | Without | For Ex zone gas | Without |
| Halogen-free | yes | Height | 13 mm |
| Length | 95 mm | Maintain electrical functions | Without |
