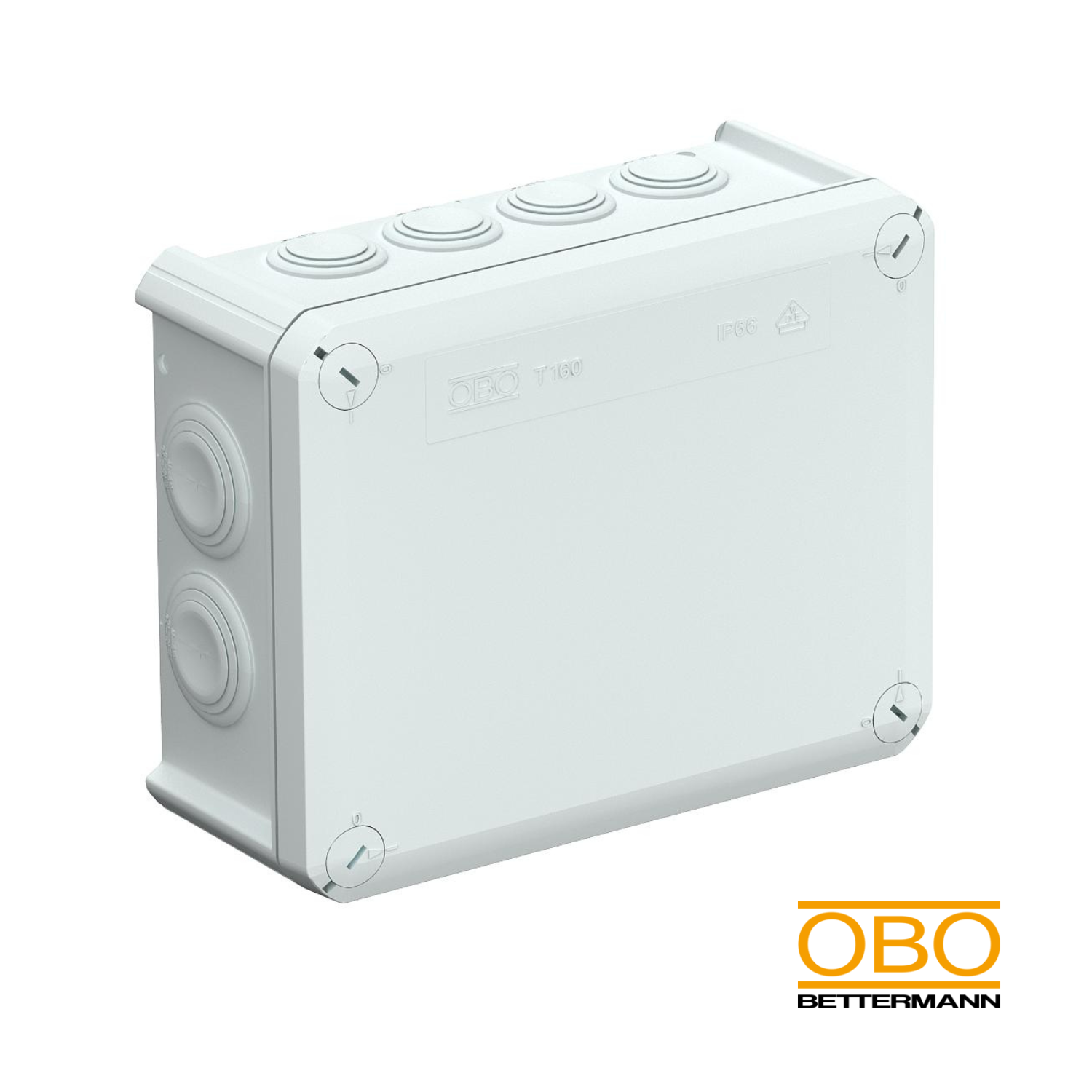

OBO Junction Box T 160, Plug in Seal
Compact, durable junction box for indoor and outdoor applications. Made from halogen-free, UV-resistant materials and a clamping cover for secure closure.
Features
- Protection Rating: IP66
- Nominal Voltage: 500 V
- Nominal Cross-Section: 16 mm²
- Cable Entries for cable diameter: 7 x M25, 5 x M32
- Cover Type: Clamping cover
- External Dimensions: 190 x 150 x 77 mm
- Clear Internal Dimensions: 176 x 135 x 67 mm
- Order in multiples of: 5
- Price per: Unit
| Sealable | yes | Material | Polypropylene, fibreglass reinforced |
|---|---|---|---|
| Measured insulation voltage Vi | 500 V | Mounting type | Wall/ceiling mounting |
| No. of entries | 12 | Nominal cross-section, min. | 16 mm² |
| Nominal voltage | 500 V | Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C | Protection rating | IP66 |
| Protection rating IK code | IK05. | Maintain electrical functions | Without |
| Shape | Rectangular | Transparent lid | no |
| Type of entry | Cable | Type of housing penetration | Cuttable stepped membrane |
| Type of insertion | Plug-in seal | Weatherproof | no |
| Width | 150 mm | with lid | yes |
| With screening | no | Expandable | yes |
| Clear internal dimensions | 176x135x67 mm | CO₂ Footprint (GWP) Cradle-to-Gate | 1,2267 kg CO₂e / 1 Piece |
| Colour | Light grey; RAL 7035 | Cover | Not transparent |
| Cover fastening | Screwed | Dimension | 190x150x77 |
| Entries | 7 x M25 | Entry from rear | yes |
| Equipment | Without | 5 x M32 | |
| Explosion-tested version | no | Fibre-glass reinforced | yes |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C | For Ex zone | Without |
| For Ex zone dust | Without | For Ex zone gas | Without |
| Halogen-free | yes | Height | 77 mm |
| Length | 190 mm |
