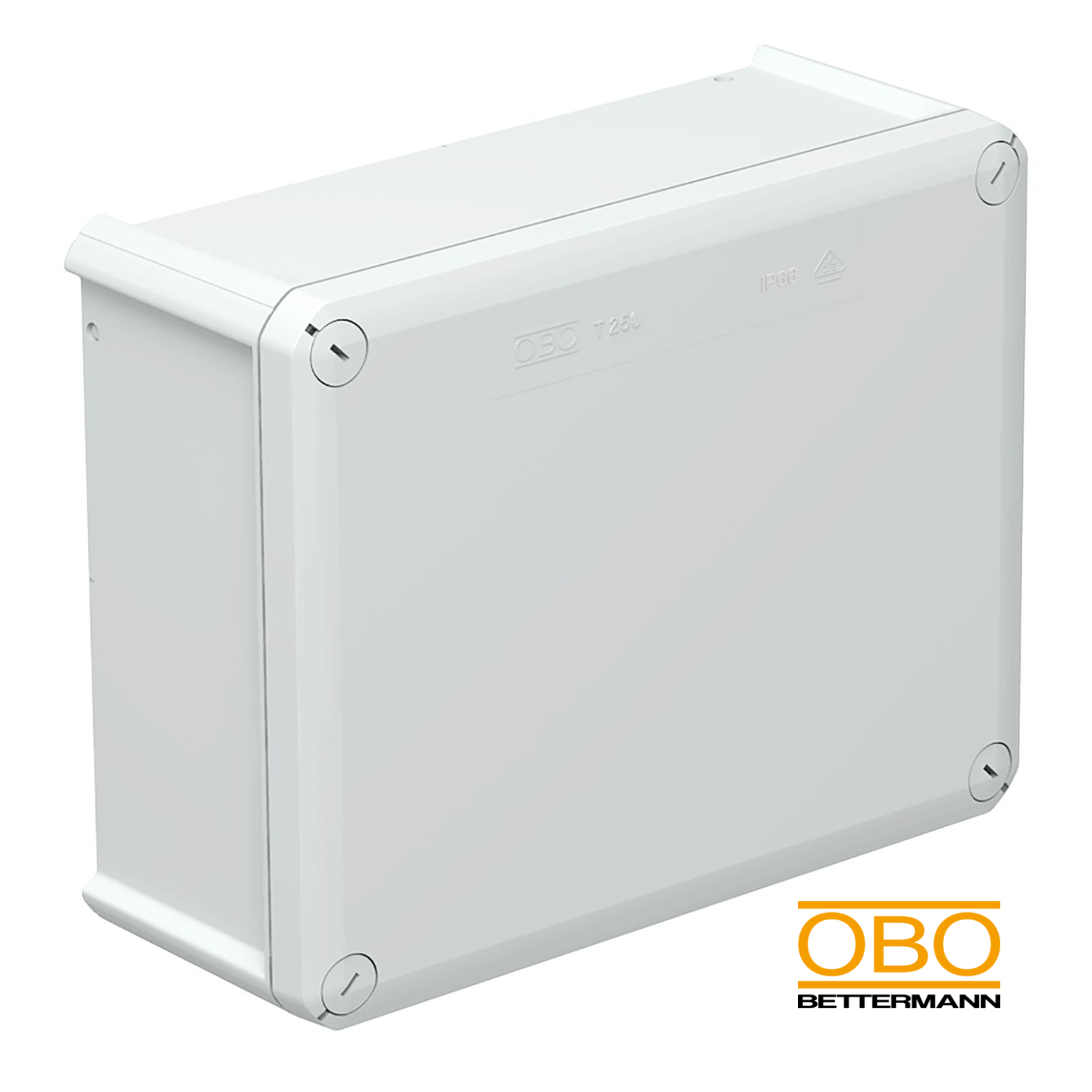

OBO Junction Box T 250, Closed
Compact, durable junction box for indoor and outdoor applications. Made from halogen-free, UV-resistant materials and a clamping cover for secure closure.
Features
- Protection Rating: IP66
- Nominal Voltage: 500 V
- Nominal Cross-Section: 25 mm²
- Cable Entries for cable diameter: No except the rear
- Cover Type: Clamping cover
- External Dimensions: 240 x 190 x 95 mm
- Clear Internal Dimensions: 225 x 173 x 86 mm
- Order in multiples of: 5
- Price per: Unit
| Sealable | yes | Material | Polypropylene, fibreglass reinforced |
|---|---|---|---|
| Measured insulation voltage Vi | 500 V | Mounting type | Wall/ceiling mounting |
| Nominal cross-section, min. | 25 mm² | Nominal voltage | 500 V |
| Permitted temperature range, max. | 60 °C | Permitted temperature range, min. | -5 °C |
| Protection rating | IP66 | Protection rating IK code | IK05. |
| Maintain electrical functions | Without | Shape | Rectangular |
| Type of entry | Cable | Type of housing penetration | Without |
| Type of insertion | None | Weatherproof | no |
| Width | 190 mm | with lid | yes |
| With screening | no | Explosion-tested version | no |
| CO₂ Footprint (GWP) Cradle-to-Gate | 1,7932 kg CO₂e / 1 Piece | Colour | Light grey; RAL 7035 |
| Cover | Not transparent | Cover fastening | Screwed |
| Dimension | 240x190x95 | Entries | None |
| Entry from rear | yes | Equipment | Without |
| Expandable | yes | Clear internal dimensions | 225x173x86 mm |
| Fibre-glass reinforced | yes | Flame-resistant | Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C |
| For Ex zone | Without | For Ex zone dust | Without |
| For Ex zone gas | Without | Halogen-free | yes |
| Height | 95 mm | Length | 240 mm |
