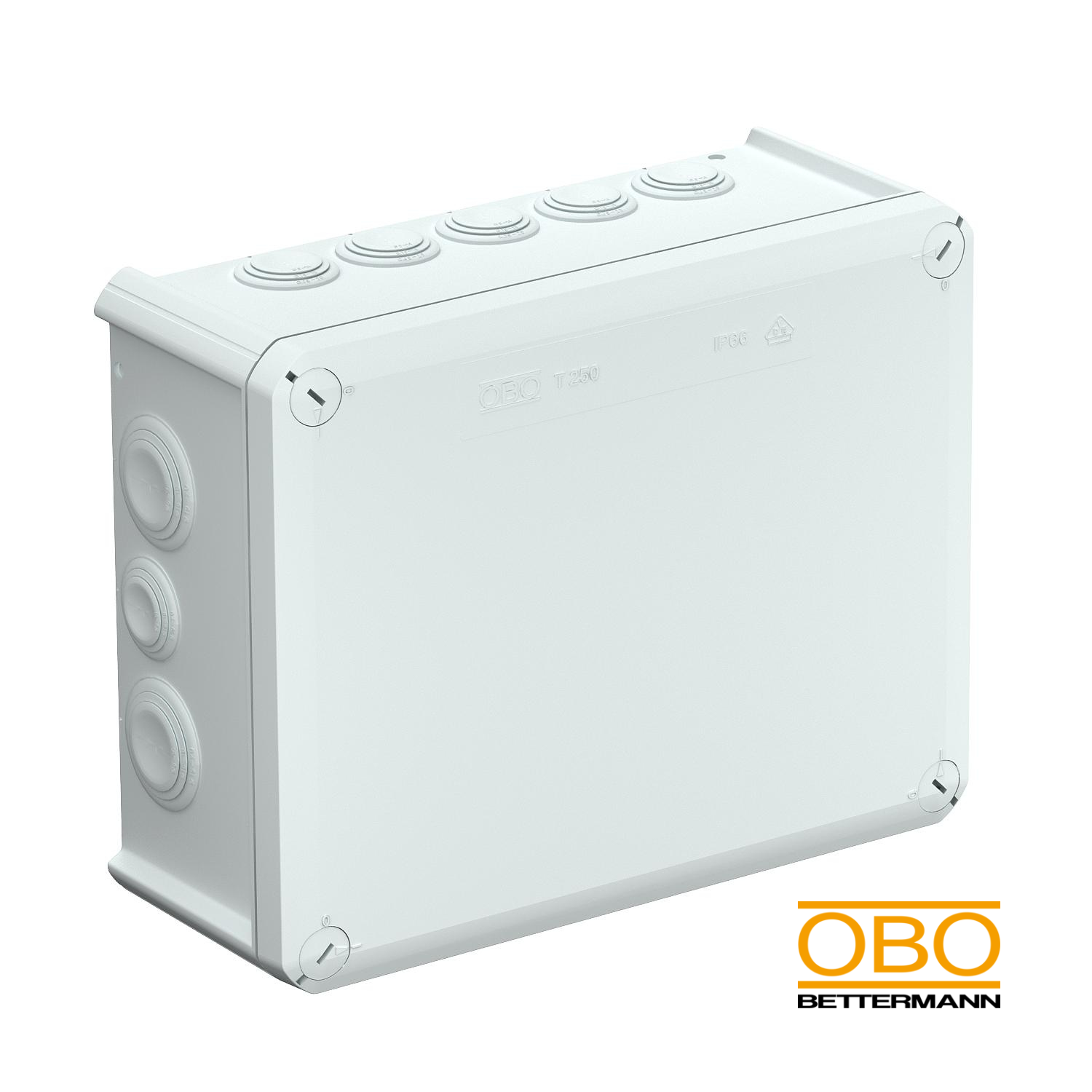

OBO Junction Box T 250, Plug in Seal
Compact, durable junction box for indoor and outdoor applications. Made from halogen-free, UV-resistant materials and a clamping cover for secure closure.
Features
Protection Rating: IP66
Nominal Voltage: 500 V
Nominal Cross-Section: 25 mm²
Cable Entries for cable diameter: 9 x M25, 7 x M32
Cover Type: Clamping cover
External Dimensions: 240 x 190 x 95 mm
Clear Internal Dimensions: 225 x 173 x 86 mm
Order in multiples of: 5
Price per: Unit
Compact, durable junction box for indoor and outdoor applications. Made from halogen-free, UV-resistant materials and a clamping cover for secure closure.
Features
Protection Rating: IP66
Nominal Voltage: 500 V
Nominal Cross-Section: 25 mm²
Cable Entries for cable diameter: 9 x M25, 7 x M32
Cover Type: Clamping cover
External Dimensions: 240 x 190 x 95 mm
Clear Internal Dimensions: 225 x 173 x 86 mm
Order in multiples of: 5
Price per: Unit
| Protection rating IK code | IK05. | Material | Polypropylene, fibreglass reinforced |
|---|---|---|---|
| Measured insulation voltage Vi | 500 V | Mounting type | Wall/ceiling mounting |
| No. of entries | 16 | Nominal cross-section, min. | 25 mm² |
| Nominal voltage | 500 V | Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C | Protection rating | IP66 |
| Maintain electrical functions | Without | Sealable | yes |
| Shape | Rectangular | Type of entry | Cable |
| Type of housing penetration | Cuttable stepped membrane | Type of insertion | Plug-in seal |
| Weatherproof | no | Width | 190 mm |
| with lid | yes | With screening | no |
| Expandable | yes | Clear internal dimensions | 225x173x86 mm |
| CO₂ Footprint (GWP) Cradle-to-Gate | 1,8403 kg CO₂e / 1 Piece | Colour | Light grey; RAL 7035 |
| Cover | Not transparent | Cover fastening | Screwed |
| Dimension | 240x190x95 | Entries | 9 x M25 |
| Entry from rear | yes | Equipment | Without |
| 7 x M32 | Explosion-tested version | no | |
| Fibre-glass reinforced | yes | Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| For Ex zone | Without | For Ex zone dust | Without |
| For Ex zone gas | Without | Halogen-free | yes |
| Height | 95 mm | Length | 240 mm |
