Code: 2007125
Shop the OBO Junction Box T350 for top-quality electrical connections. Perfect for commercial and residential applications. Durable and reliable design.
Loading...

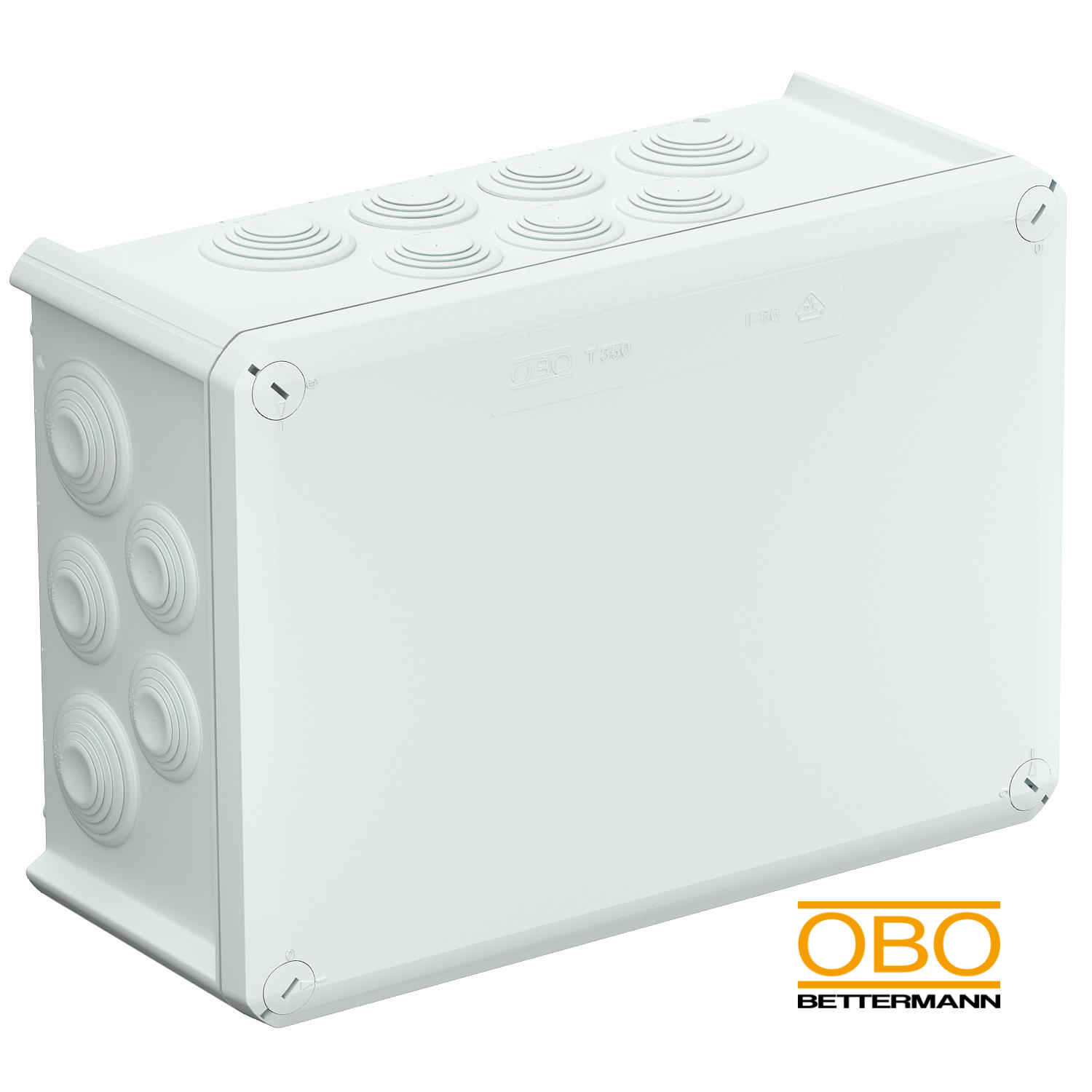

OBO Junction Box T 350, Plug in Seal
Compact, durable junction box for indoor and outdoor applications. Made from halogen-free, UV-resistant materials and a clamping cover for secure closure.
Features
Protection Rating: IP66
Nominal Voltage: 500 V
Nominal Cross-Section: 35 mm²
Cable Entries for cable diameter: 16 x M32, 8 x M40
Cover Type: Clamping cover
External Dimensions: 285 x 201 x 120 mm
Clear Internal Dimensions: 267 x 182 x 110 mm
Order in multiples of: 5
Price per: Unit
| Protection rating IK code | IK05. | Material | Polypropylene, fibreglass reinforced |
|---|---|---|---|
| Measured insulation voltage Vi | 500 V | Mounting type | Wall/ceiling mounting |
| No. of entries | 24 | Nominal cross-section, min. | 35 mm² |
| Nominal voltage | 500 V | Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C | Protection rating | IP66 |
| Maintain electrical functions | Without | Sealable | yes |
| Shape | Rectangular | Type of entry | Cable |
| Type of housing penetration | Cuttable stepped membrane | Type of insertion | Plug-in seal |
| Weatherproof | no | Width | 201 mm |
| with lid | yes | With screening | no |
| Explosion-tested version | no | CO₂ Footprint (GWP) Cradle-to-Gate | 2,7244 kg CO₂e / 1 Piece |
| Colour | Light grey; RAL 7035 | Cover | Not transparent |
| Cover fastening | Screwed | Dimension | 285x201x120 |
| Entries | 8 x M40 | Entry from rear | yes |
| Equipment | Without | Expandable | yes |
| Clear internal dimensions | 267x182x110 mm | Fibre-glass reinforced | yes |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C | For Ex zone | Without |
| For Ex zone dust | Without | For Ex zone gas | Without |
| Halogen-free | yes | Height | 120 mm |
| Length | 285 mm |
