Code: 2007904
Shop the OBO Junction Box T40, with Knock-Out Entries, with Terminal Strip. Perfect for commercial and residential applications.
Loading...

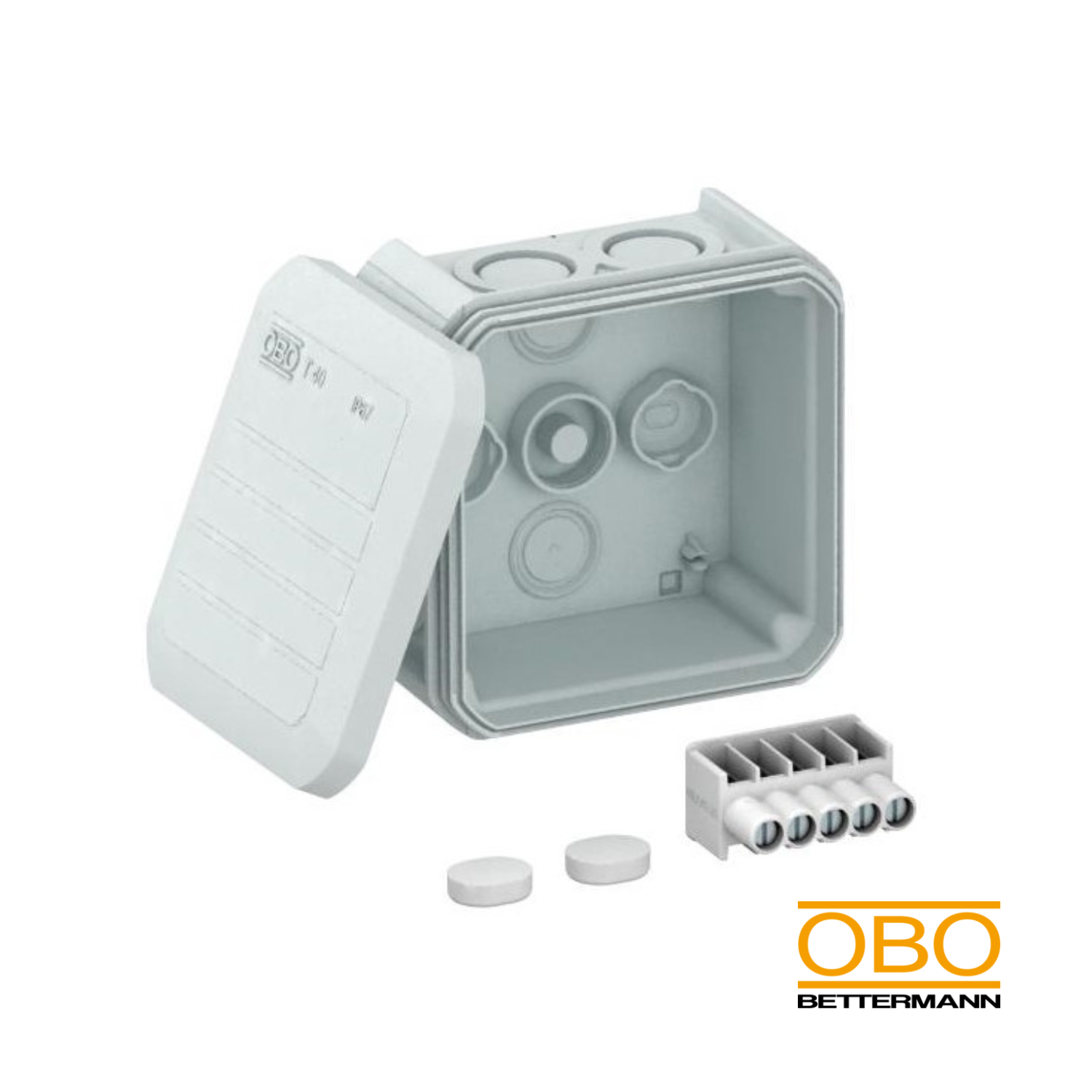

OBO Junction Box T40, with Knock-Out Entries, with Terminal Strip
Compact, durable junction box for indoor and outdoor applications. Made from halogen-free, UV-resistant materials and a clamping cover for secure closure.
Features
Protection Rating: IP67
Nominal Voltage: 500 V
Nominal Cross-Section: 4 mm²
Cable Entries for cable diameter: 7 x Ø20
Cover Type: Clamping cover
External Dimensions: 90 x 90 x 52 mm
Clear Internal Dimensions: 77 x 77 x 46 mm
Order in multiples of: 5
Price per: Unit
| Protection rating IK code | IK07. | Measured insulation voltage Vi | 500 V |
|---|---|---|---|
| Mounting type | Wall/ceiling mounting | No. of entries | 7 |
| Nominal cross-section, min. | 4 mm² | Nominal voltage | 500 V |
| Number of terminals | 5 | Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C | Protection rating | IP67 |
| Material | Polypropylene | Sealable | yes |
| Shape | Square | Type of entry | Gland |
| Type of housing penetration | Pre-marking | Type of insertion | Plug-in seal |
| Weatherproof | no | Width | 90 mm |
| with lid | yes | With screening | no |
| Explosion-tested version | no | CO₂ Footprint (GWP) Cradle-to-Gate | 0,2692 kg CO₂e / 1 Piece |
| Colour | Light grey; RAL 7035 | Cover | Not transparent |
| Cover fastening | Locking | Dimension | 90x90x52 |
| Entries | 7 x Ø20 | Entry from rear | yes |
| Equipment | Without | Expandable | yes |
| Clear internal dimensions | 77x77x46 mm | Fibre-glass reinforced | no |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C | For Ex zone | Without |
| For Ex zone dust | Without | For Ex zone gas | Without |
| Halogen-free | yes | Height | 52 mm |
| Length | 90 mm | Maintain electrical functions | Without |
