Code: 2007914
Shop the OBO Junction Box T60, with Knock-Out Entries, with Terminal Strip. Perfect for commercial and residential applications.
Loading...

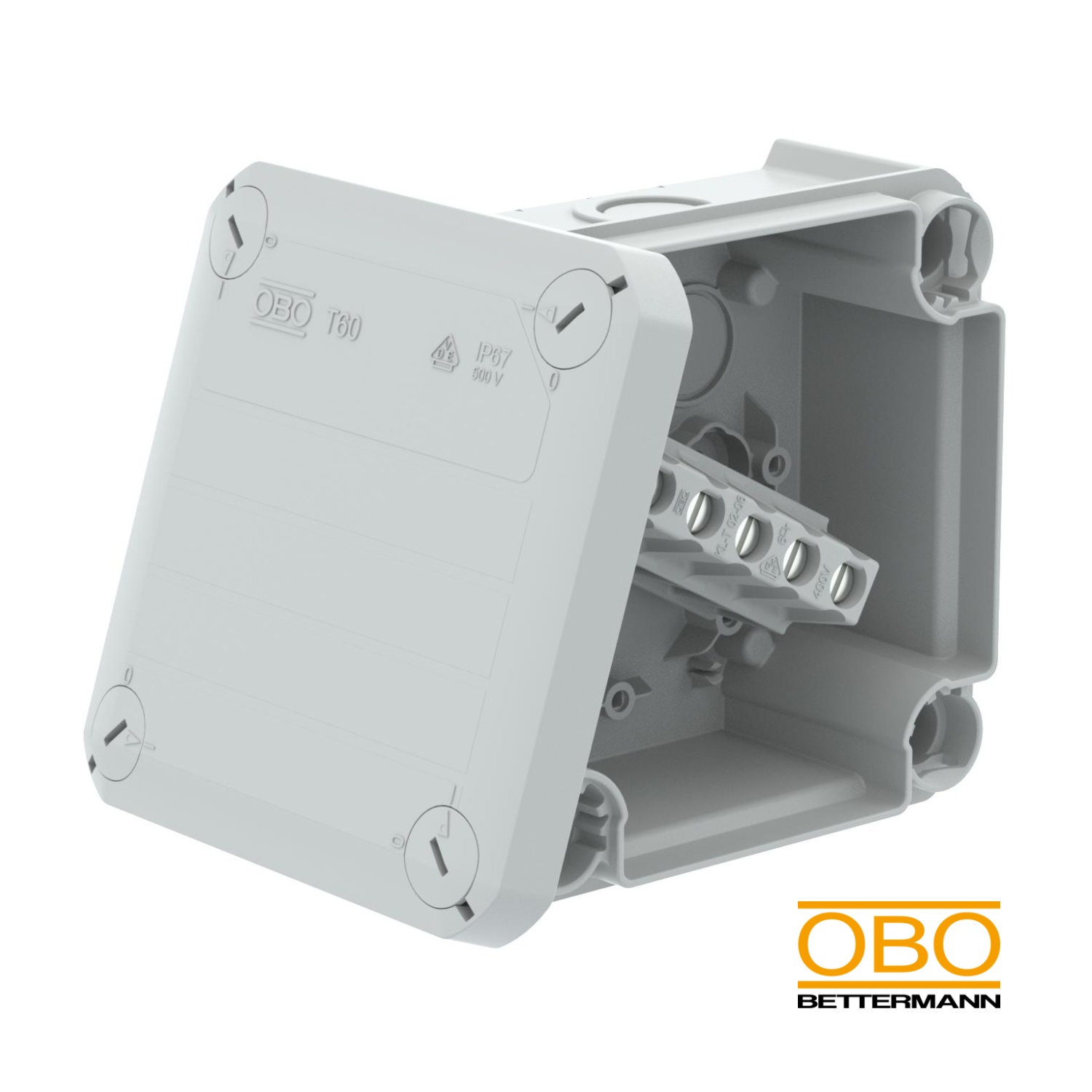

OBO Junction Box T60, with Knock-Out Entries, with Terminal Strip
Compact, durable junction box for indoor and outdoor applications. Made from halogen-free, UV-resistant materials and a clamping cover for secure closure.
Features
- Protection Rating: IP67
- Nominal Voltage: 500 V
- Nominal Cross-Section: 6 mm²
- Cable Entries for cable diameter: 7 x Ø20
- Cover Type: Clamping cover
- External Dimensions: 114 x 114 x 67 mm
- Clear Internal Dimensions: 100 x 100 x 48 mm
- Order in multiples of: 5
- Price per: Unit
| Protection rating IK code | IK07. | Material | Polypropylene |
|---|---|---|---|
| Measured insulation voltage Vi | 500 V | Mounting type | Wall/ceiling mounting |
| No. of entries | 7 | Nominal cross-section, min. | 6 mm² |
| Nominal voltage | 500 V | Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C | Protection rating | IP67 |
| Maintain electrical functions | Without | Sealable | yes |
| Shape | Square | Type of entry | Gland |
| Type of housing penetration | Pre-marking | Type of insertion | Plug-in seal |
| Weatherproof | no | Width | 114 mm |
| with lid | yes | With screening | no |
| Explosion-tested version | no | CO₂ Footprint (GWP) Cradle-to-Gate | 0,7238 kg CO₂e / 1 Piece |
| Colour | Light grey; RAL 7035 | Cover | Not transparent |
| Cover fastening | Screwed | Dimension | 114x114x57 |
| Entries | 7 x Ø20 | Entry from rear | yes |
| Equipment | Terminal | Expandable | yes |
| Clear internal dimensions | 100x100x48 mm | Fibre-glass reinforced | no |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C | For Ex zone | Without |
| For Ex zone dust | Without | For Ex zone gas | Without |
| Halogen-free | yes | Height | 57 mm |
| Length | 114 mm |
