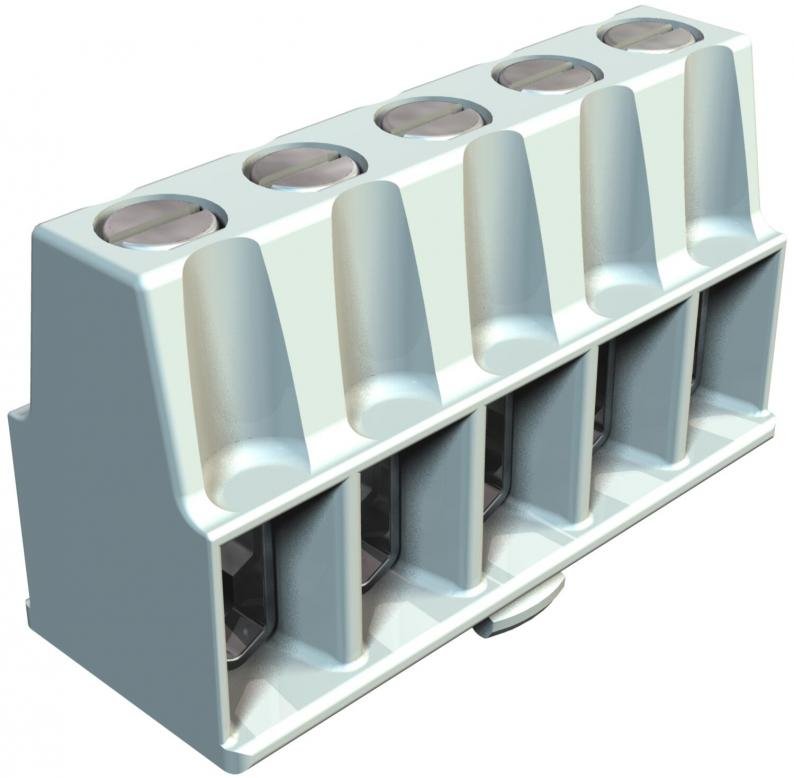

Versatile Internal Wiring: OBO Terminal Strip KL-T 02-06 for T-Series Junction Boxes
Streamline multi-conductor distribution with a robust, high-current 5-pole terminal block.
The OBO Terminal Strip KL-T 02-06 (Item No. 2016185) is designed specifically as a retrofittable system accessory for OBO T60 and B9/TM series junction boxes. Engineered to handle conductor cross-sections from 1.5 mm² to 6 mm² at a rated voltage of 400 V, this 5-pole terminal block provides a dependable, organised wiring hub for low-voltage power distribution in residential, commercial, and light industrial applications.
Why the KL-T 02-06 Terminal Strip is a Project Essential:
- High Current Carrying Capacity: Rated for up to 41 A and 400 V, allowing reliable connections for heavy power circuits without risk of thermal degradation.
- Multi-Conductor Terminal Capacity: Generous socket design permits versatile conductor combinations per pole, supporting up to 3x6 mm², 4x4 mm², or 6x2.5 mm² wires.
- Galvanised Steel Clamps: Zinc-plated, transparent-chromated steel screws and terminal sockets ensure corrosion resistance and lasting contact pressure over time.
- Flame-Retardant Polyamide Housing: Manufactured from halogen-free thermoplast rated flame-resistant up to 960 °C, offering maximum electrical insulation and safety.
- Seamless Enclosure Integration: Engineered for precision, snap-in or screw-mount fitment inside OBO T60 series junction boxes to keep wiring neat and fully compliant.
Professional Cable Management at Scale:

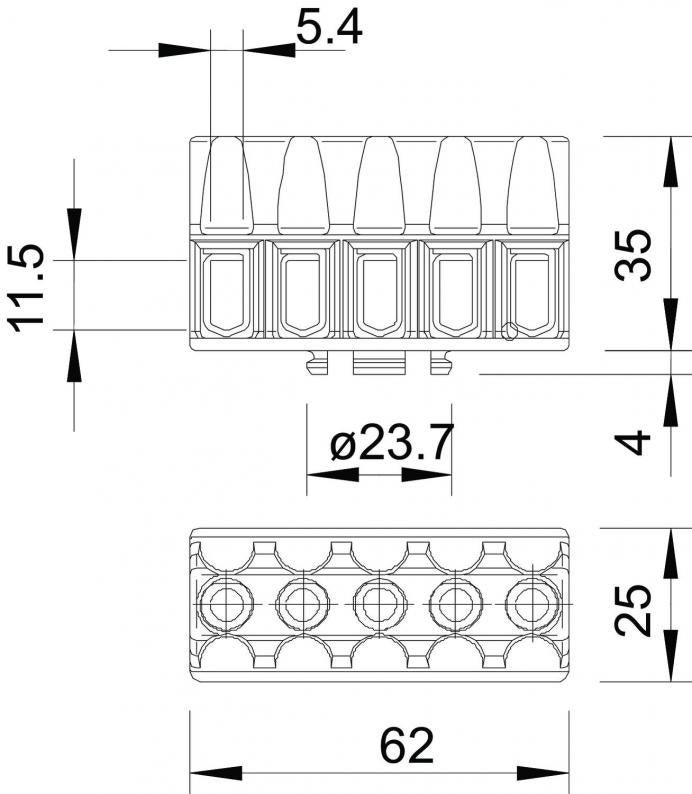

For electrical contractors needing to maximize internal enclosure space, the KL-T 02-06 simplifies complicated branching tasks. Its high cross-sectional flexibility allows for effortless looping and bridging of power lines within a compact 62x25x35 mm footprint, reducing installation time while delivering long-term structural and electrical reliability.
| Width | 25 mm | Closing plate required | no |
|---|---|---|---|
| Insulation material | Thermoplast | Version of electrical connection 1 | Screw connection |
| Transparent | no | Pole number | 5 |
| Number of screwless terminals per pole | 1 | Nominal current | 41 A |
| No. of terminals | 5 | Connection position | Side |
| Connectable conductor cross-section, single-wire, min. | 2,5 mm² | Connectable conductor cross-section, single-wire, max. | 6 mm² |
| Colour | Light grey | Nominal cross-section, max. | 6 mm² |
| Nominal voltage | 400 V | Nominal cross-section, min. | 1,5 mm² |
| Explosion-tested version | no | Cross-section | Max. connectable cross-sections per terminal: 3 x 6 mm², 4 x 4 mm² or 6 x 2.5 mm² mm² |
| Height | 35 mm | Material | Polyamide |
| Length | 62 mm | Dimension | 6mm² |
