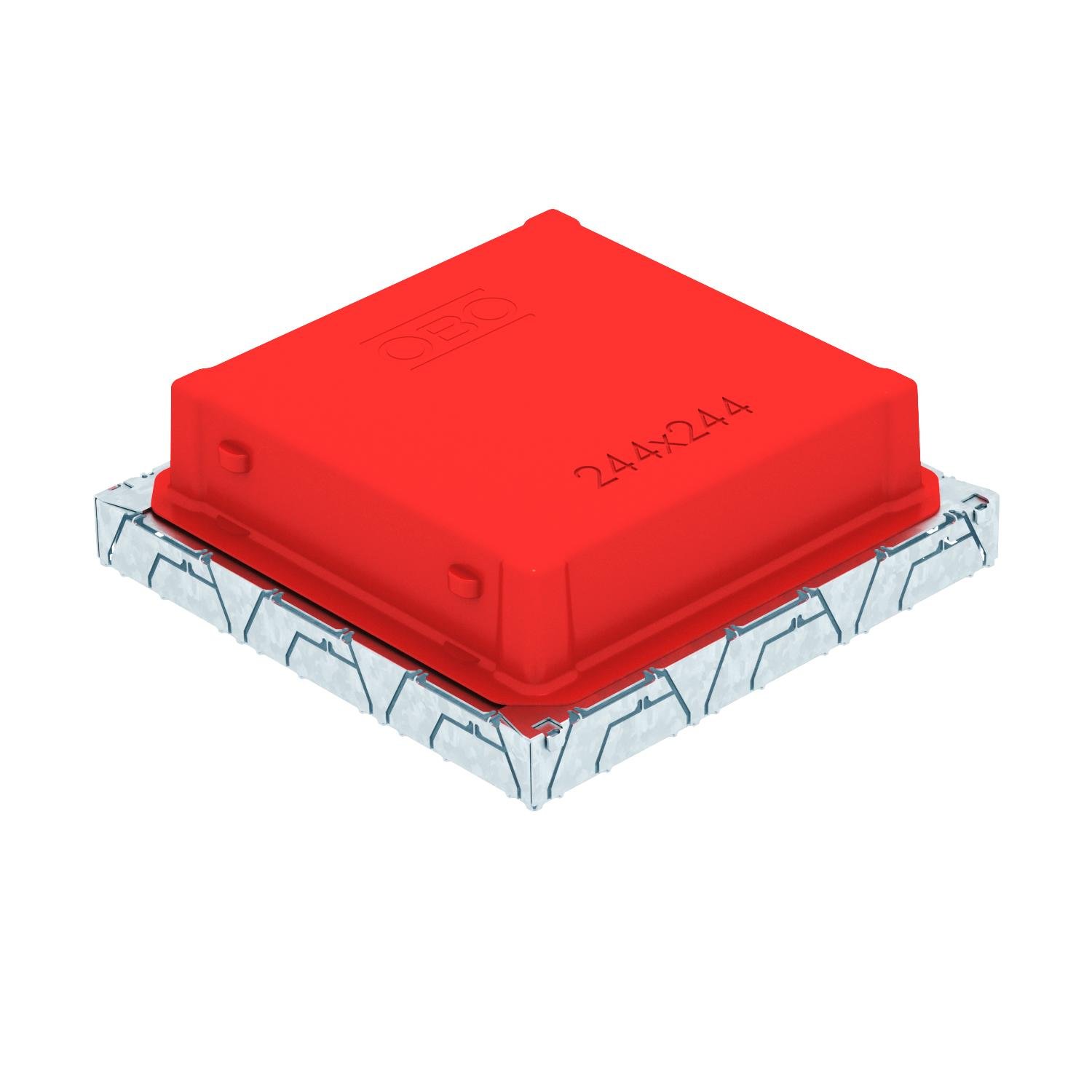

OBO Underfloor Box UDS9 for PVC Duct

Underfloor outlet box with fixed, unchangeable 244 x 244 mm installation opening for an installation unit of nominal size 9. The mounting opening is created using the screed protection cover contained in the scope of supply. The underfloor box possesses installation openings for three single-compartment PVC ducts of nominal size 60 x 25 and 90 x 35 on all four sides. The box is principally suited for use in floor structures in cement screed with a structure height of up to 100 mm.

• Dimension: 308x308x92
• Height: 92mm
• Duct height, min: 25mm
• Length: 308mm
• Width: 308mm
• Trunking width, min: 60mm
• Trunking width, max: 90mm
• Trunking height, max: 35mm
