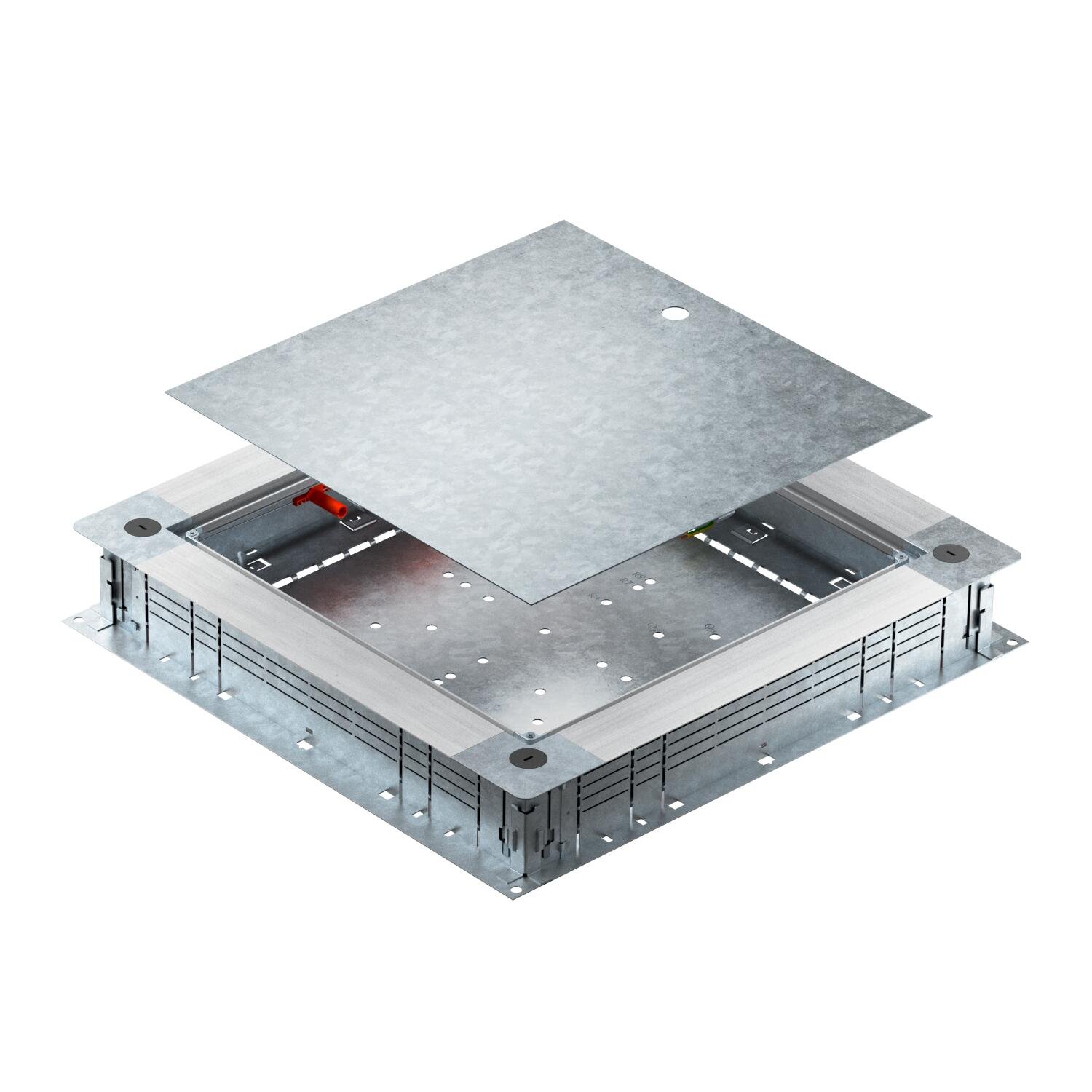

OBO UZD350-4 Junction and Branch Box

Junction and branch box for screed-covered underfloor installation duct with sheet steel side walls. For mounting of installation units in the mounting cover (to be ordered separately). Can be infinitely adjusted to a nominal screed height of 80–160 mm using the quick height-adjustment unit. The screed can be worked up to be flush with the screed draw-off edge. With noise decoupling option after screed laying and can also be used with system accessories for heavy-duty applications. Insertion of cables with the 2-part EÜK duct.

• Material: Steel
• Surface: Strip galvanized
• Dimension: 500x480x80
• Width: 250mm
• Screed height, max: 160mm
• Screed height, min: 80mm
• Trunking height, max: 58mm
• Trunking width, min: 190mm
